If your car has weak starts, dim lights, or random battery warning signs, the alternator may be the real problem. The good news is that you do not need an expensive shop visit to get a strong first answer. With a simple multimeter, you can check if the charging system is doing its job.
This guide explains how to test car alternator with multimeter in a clear, practical way. You will learn what readings to expect, how to test safely, and how to tell the difference between a bad alternator, a weak battery, and a loose connection. Many drivers replace batteries first and miss the real issue. That wastes time and money.
By the end, you will know how to test the alternator at rest, while the engine is running, and under load. You will also learn a few mistakes that can make a good alternator look bad.
What a multimeter can tell you about the alternator
A multimeter measures voltage. For alternator testing, voltage is the most useful clue because the alternator is supposed to keep the battery charged while the engine runs. If the alternator is healthy, system voltage should rise above battery resting voltage once the engine starts.
The test is not only about one number. You want to see how voltage changes in different conditions. A good alternator should produce stable charging voltage, not just a brief spike. If voltage is too low, the battery may not charge. If voltage is too high, the electrical system can be damaged.
Here is the basic idea:
- Engine off: checks battery resting voltage.
- Engine idling: checks basic charging output.
- Engine with electrical load: checks how well the alternator handles demand.
Before you begin, make sure you have a digital multimeter, safety gloves if you want extra protection, and access to the battery terminals. If the battery itself is very weak or damaged, the readings may be confusing. You can still test, but you should read the results carefully.
What you need before you start
You do not need special tools. A basic digital multimeter is enough for most cars. Some models also let you test AC voltage, which is helpful if you suspect alternator diode problems.
Tools and safety basics
- Digital multimeter
- Vehicle owner’s manual, if available
- Safety gloves, optional but helpful
- Clean access to the battery terminals
Set the multimeter to DC volts for the main charging tests. If your multimeter has ranges, choose the 20V DC setting for a 12-volt car system. Most modern cars use a 12-volt electrical system, so that range works well.
For a general reference on battery basics and charging system checks, you can also review guidance from Bosch Aftermarket, which is a trusted automotive source.
One important thing beginners miss
Do not test only the alternator and ignore the battery. A failing battery can drag system voltage down and make a healthy alternator look weak. That is why the first reading, with the engine off, matters so much. It gives you a baseline.
Step-by-step: how to test car alternator with multimeter
The process below gives you a reliable first diagnosis. Take your time and record each reading. Small changes matter.
1. Check the battery with the engine off
Turn the engine off and make sure all lights, radio, and accessories are off. Open the hood and connect the multimeter leads to the battery terminals:
- Red lead to the positive terminal
- Black lead to the negative terminal
A fully charged car battery usually reads around 12.6 volts. A healthy battery may be between 12.4 and 12.7 volts. If the reading is much lower, the battery may be weak or discharged, which can affect the test.
If you see a reading below about 12.2 volts, charge the battery before judging the alternator. A very low battery can confuse the results.
2. Start the engine and read the voltage again
Keep the multimeter connected to the battery and start the car. With the engine running at idle, the voltage should usually rise to around 13.7 to 14.7 volts. This shows the alternator is charging the battery.
If the reading stays near the engine-off value, such as 12.2 to 12.6 volts, the alternator may not be charging. But do not stop there. A loose belt, bad connection, or blown fuse in the charging circuit can also cause this problem.
If the voltage is over 15 volts, that is a warning sign too. Overcharging can damage the battery and electronics. In that case, the voltage regulator may be failing.
3. Raise the engine speed slightly
Gently press the accelerator until the engine is around 1,500 to 2,000 RPM. Watch the voltage display again. It should stay fairly stable, usually within the same charging range. A good alternator should not swing wildly up and down.
Many people think higher RPM should always mean much higher voltage. That is not true on most modern cars. The voltage regulator controls output, so the reading should stay steady. If voltage jumps around a lot, that may point to a bad alternator, slipping belt, or poor wiring.
4. Turn on electrical loads
Now test the alternator under demand. Turn on the headlights, cabin fan, rear defroster, and air conditioning if possible. Keep the engine running and watch the voltage.
A healthy charging system should usually stay above 13 volts even with several loads on. Some vehicles may dip a little at idle, but the system should recover quickly and remain stable. If voltage falls near battery voltage or below, the alternator may not have enough output.
5. Check for AC ripple if your multimeter can measure it
This step is often missed, but it can reveal a hidden alternator problem. A bad diode inside the alternator can create AC ripple in the electrical system. The car may still run, but you might notice battery drain, electrical noise, or strange behavior from accessories.
Switch your multimeter to AC volts. With the engine running, test across the battery terminals again. In many cases, AC voltage should be very low, often under 0.5 volts AC. Higher readings may suggest alternator diode trouble.
This is one of the most useful non-obvious checks because a car can show normal DC charging voltage and still have a failing alternator inside.
How to read the results correctly
Voltage numbers make sense only when you compare them to the situation. Use the table below as a simple guide.
| Test condition | Normal reading | Possible problem |
|---|---|---|
| Engine off | 12.4 to 12.7 volts | Below 12.2 volts may mean weak battery |
| Engine idling | 13.7 to 14.7 volts | Near battery voltage may mean no charging |
| Engine at 1,500 to 2,000 RPM | Stable within charging range | Large swings may mean belt or alternator issue |
| With electrical loads on | Usually above 13 volts | Big voltage drop may mean weak alternator |
| AC ripple at battery | Very low, often under 0.5V AC | Higher reading may mean bad diode |
These numbers are general guides, not strict laws. Some smart charging systems use slightly different voltage patterns. Newer cars may lower charging voltage on purpose to improve fuel economy. If you suspect that is the case, compare your reading with the vehicle’s service manual.

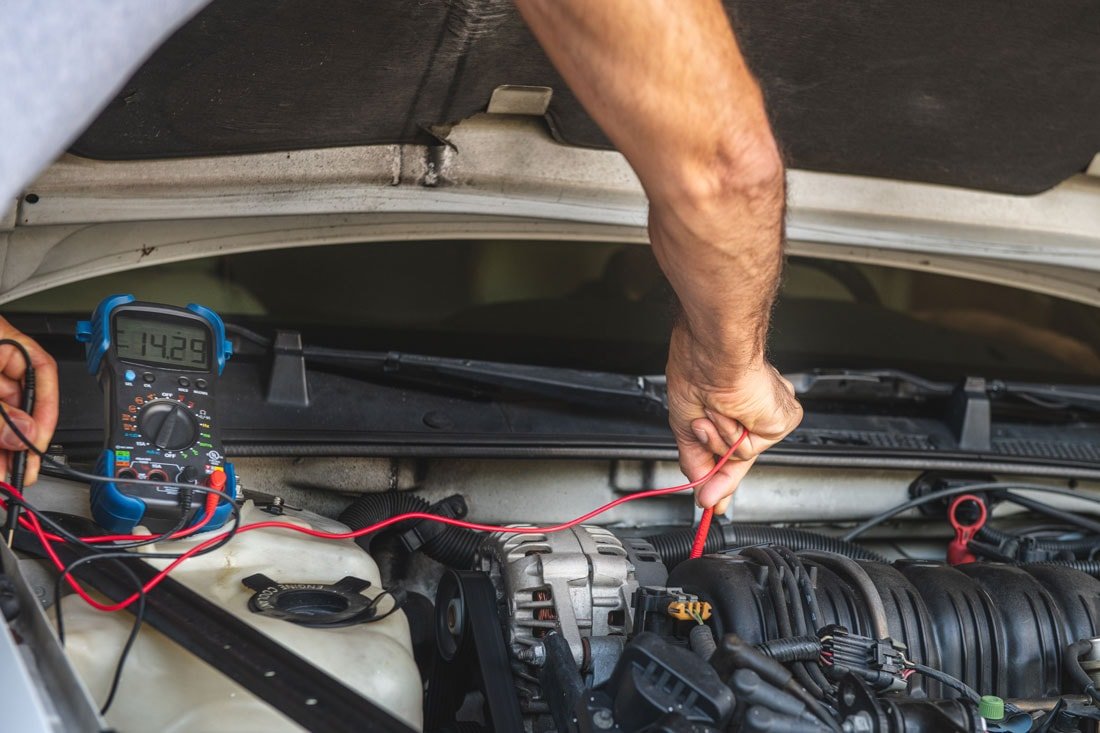

Credit: autozone.com
Two common mistakes people make
First, they test only once. A single reading can be misleading if the battery was just under a load or the engine idle was unstable. Take at least two or three readings.
Second, they ignore poor connections. Corrosion on battery terminals, loose clamps, or a bad ground can cause voltage loss. The alternator may be fine, but the electricity cannot reach the battery properly.
Extra checks that improve accuracy
If the first test suggests a problem, a few extra checks can save you from guessing. These are simple and often very revealing.

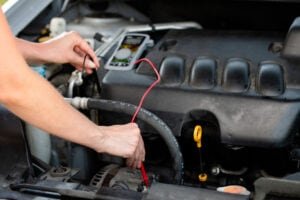

Credit: kaiweets.com
Check the serpentine belt
The alternator is usually driven by a belt. If that belt is loose, cracked, glazed, or slipping, the alternator may not spin fast enough. That can create low charging voltage even if the alternator itself is still in decent shape.
Look for:
- Cracks or fraying
- Squealing noise
- Loose belt tension
- Shiny, glazed surface
Inspect the battery terminals
Dirty terminals can create resistance. That resistance can reduce charging performance and produce strange voltage readings. Remove corrosion carefully and make sure the clamps are tight. A small amount of white or green buildup can matter more than many people expect.
Measure voltage at the alternator output
If you want a deeper check, measure voltage directly at the alternator output terminal and then compare it to the battery voltage. A large difference may point to wiring resistance between the alternator and battery.
For example, if the alternator output shows 14.4 volts but the battery only sees 13.0 volts, the alternator may be working, but the charging path has a problem. This is a useful clue that many beginners miss.
Test voltage drop on the ground side
A weak ground connection can cause false symptoms. If your multimeter and experience level allow it, check the ground path between the alternator or battery negative and the engine block. A poor ground can look like a bad alternator, but the fix may be much simpler.
Signs the alternator is likely failing
A multimeter test is best, but symptoms help confirm the diagnosis. If several of these happen together, the alternator deserves close attention:
- Battery light on the dashboard
- Dim headlights at idle
- Electrical accessories acting weak or unstable
- Car stalls after a jump start
- Dead battery that returns soon after charging
- Burning smell or loud whining near the engine
One important point: a car can still run with a failing alternator for a while. That does not mean the problem is small. If the alternator stops charging completely, the car will run only until the battery is drained.
What to do if the readings are not normal
Your next step depends on what the multimeter told you.
If voltage is too low
Check the battery condition, terminal cleanliness, belt tension, and main charging wires. If those are fine and the alternator still does not produce proper voltage, the alternator may need repair or replacement.
If voltage is too high
High voltage often points to a faulty voltage regulator, which may be built into the alternator on many cars. This should be fixed quickly because overcharging can shorten battery life and damage electronics.
If voltage looks normal but the car still has symptoms
Do not assume the alternator is good just because one reading looks okay. Check for AC ripple, bad grounds, loose belts, and battery health. Some charging problems appear only under load or only after the vehicle warms up.
That warm-up detail is another thing beginners often miss. An alternator can test fine when cold and fail after 15 to 20 minutes of driving. If the problem happens only later, repeat the test after the engine reaches normal temperature.
How to avoid a false diagnosis
Many charging system mistakes come from testing under the wrong conditions. Keep these points in mind:
- Do not test with corroded probes or dirty terminals.
- Do not trust one reading without a second check.
- Do not ignore the battery’s condition.
- Do not skip load testing.
- Do not assume all vehicles charge at exactly the same voltage.
If your car has start-stop technology, smart charging, or a newer computer-controlled system, charging voltage may change based on driving conditions. In those vehicles, the alternator can intentionally lower output at times. A service manual or model-specific guide may be needed for a deeper diagnosis.
When to stop testing and get help
If the alternator area is hard to reach, the belt system looks damaged, or the battery terminals are badly corroded, it may be better to get a mechanic involved. Also, if you test the system and still get mixed results after several checks, the issue may be in the wiring, fuse box, or engine control system rather than the alternator itself.
At that point, a shop can do a full charging system test with more advanced tools. But for many drivers, the multimeter test is enough to show whether the alternator is the likely cause.

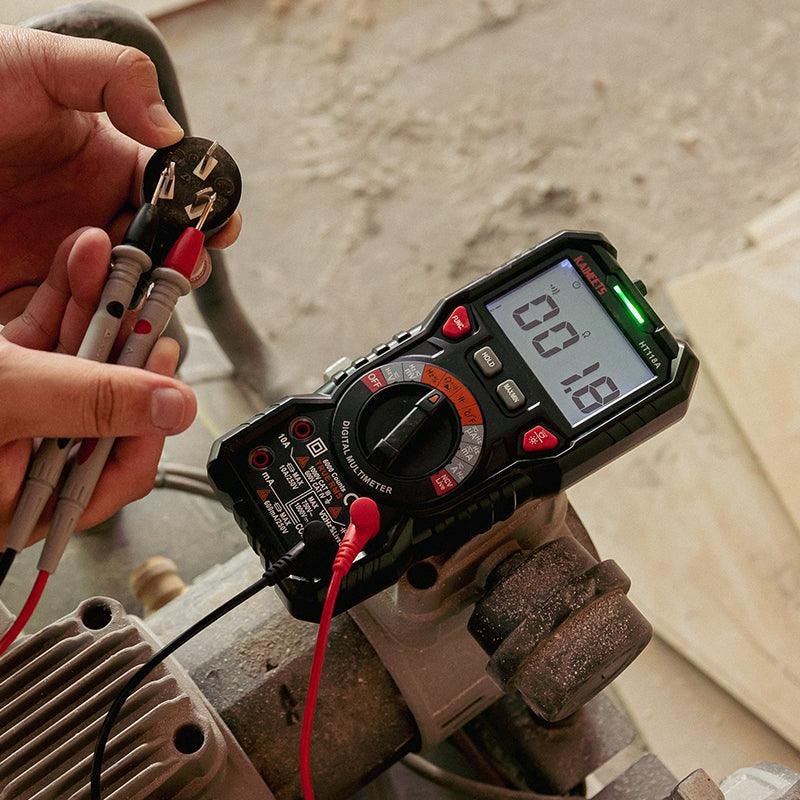

Credit: autozone.com
Simple summary of the process
If you want the shortest version, this is it:
- Measure battery voltage with engine off.
- Start the engine and check charging voltage.
- Raise RPM slightly and watch for stability.
- Turn on electrical loads and see if voltage stays healthy.
- Check AC ripple if possible.
- Inspect belt, terminals, and grounds if readings are not normal.
This is the practical way to how to test car alternator with multimeter without guessing. It gives you clear clues and helps you avoid replacing the wrong part.
FAQs
1. What voltage should a car alternator produce?
Most 12-volt cars should show about 13.7 to 14.7 volts with the engine running. Some vehicles may be a little higher or lower depending on the charging system design.
2. Can a bad battery make the alternator look bad?
Yes. A weak battery can pull system voltage down and confuse the results. That is why you should always test battery voltage with the engine off before judging the alternator.
3. Can I test the alternator without removing it?
Yes. In most cases, you can test it directly in the car using a multimeter at the battery terminals. You usually do not need to remove the alternator for a basic diagnosis.
4. What does it mean if the voltage is over 15 volts?
Voltage above 15 volts often means the charging system is overcharging. This can point to a bad voltage regulator or alternator problem and should be checked soon.
5. Is AC voltage testing really necessary?
Not always, but it can help. AC ripple testing is useful when you suspect a bad alternator diode or hidden charging problem that does not show up in a normal DC voltage test.
